Description

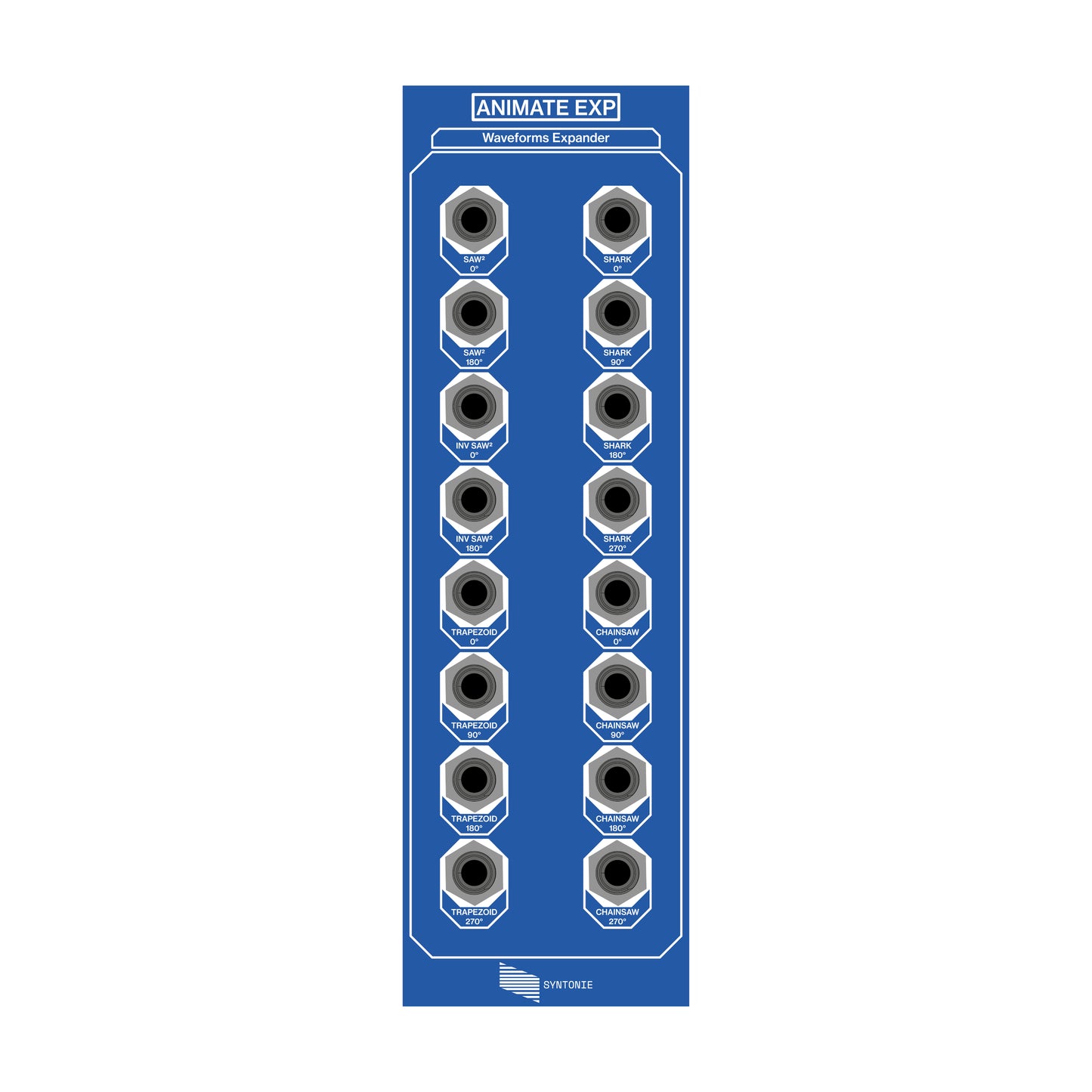

Adds 4 additional waveforms to Animate: saw, trapezoid, shark and chainsaw.
Saw is twice the frequency of other waveforms and are 180° degrees apart, all other waveforms are 90° degrees apart.
Connected to Animate through 2x 4pin connector, the core module provides power and triangle/square waveforms used to derive the expander waveforms.
Outputs:
0-1V, 499 ohm
Specs:
– 8HP
– 40mA +12V
– 0mA -12V
– 0mA +5V
– 15mm deep
