Description

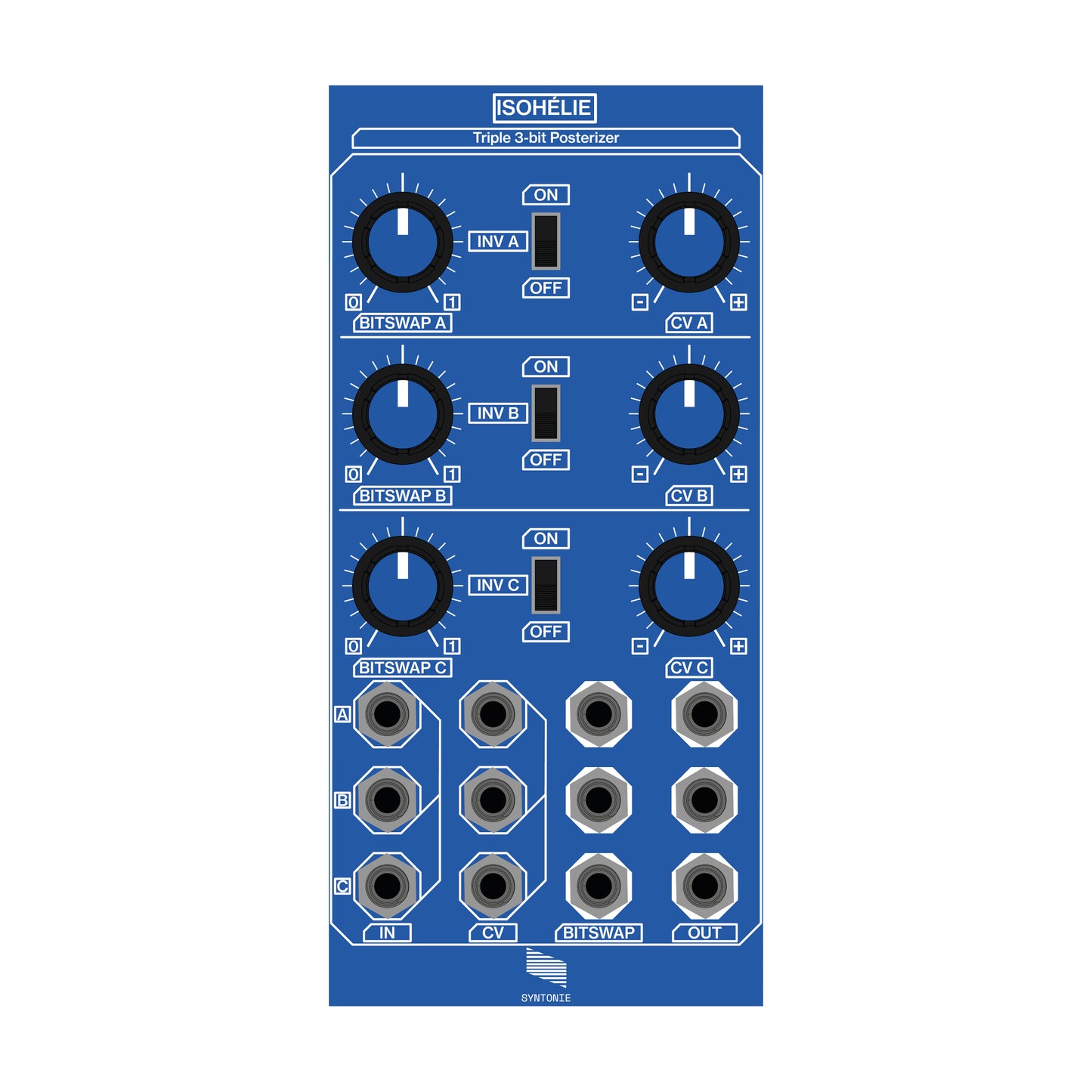

Isohélie is a term used in french versions of graphic editing softwares to describe posterization, it is formed on ancient Greek “iso” meaning equal and “hêlios” meaning sun/light.
Each channel is based around a 3-bit ADC/DAC which will quantize the input signal into 8 equal steps, resulting in 8 different color shades. Processing a full RGB signal with the 3 channels will constrain it to 512 possible colors.
The bitswap features allows to swap the 3 bits together before they’re summed by the R2R DAC, which result in a colorization effect and can be controlled up to video rate.
All 3 signal inputs and CV inputs are normalized together.
Powered through standard Eurorack connector or DC barrel.
Inputs:
– 0-1V IN, 499 ohm
– 0-1V CV, 499 ohm
Outputs:
– 0-1V Bitswap, 499 ohm
– 0-1V OUT, 499 ohm
Specs:
– 12HP
– 230mA +12V
– 0mA -12V
– 0mA +5V
– 42mm deep
