RCA Cable

3,00€ – 4,00€

SKU: N/A Category: Accessories

Description
Additional information

Description

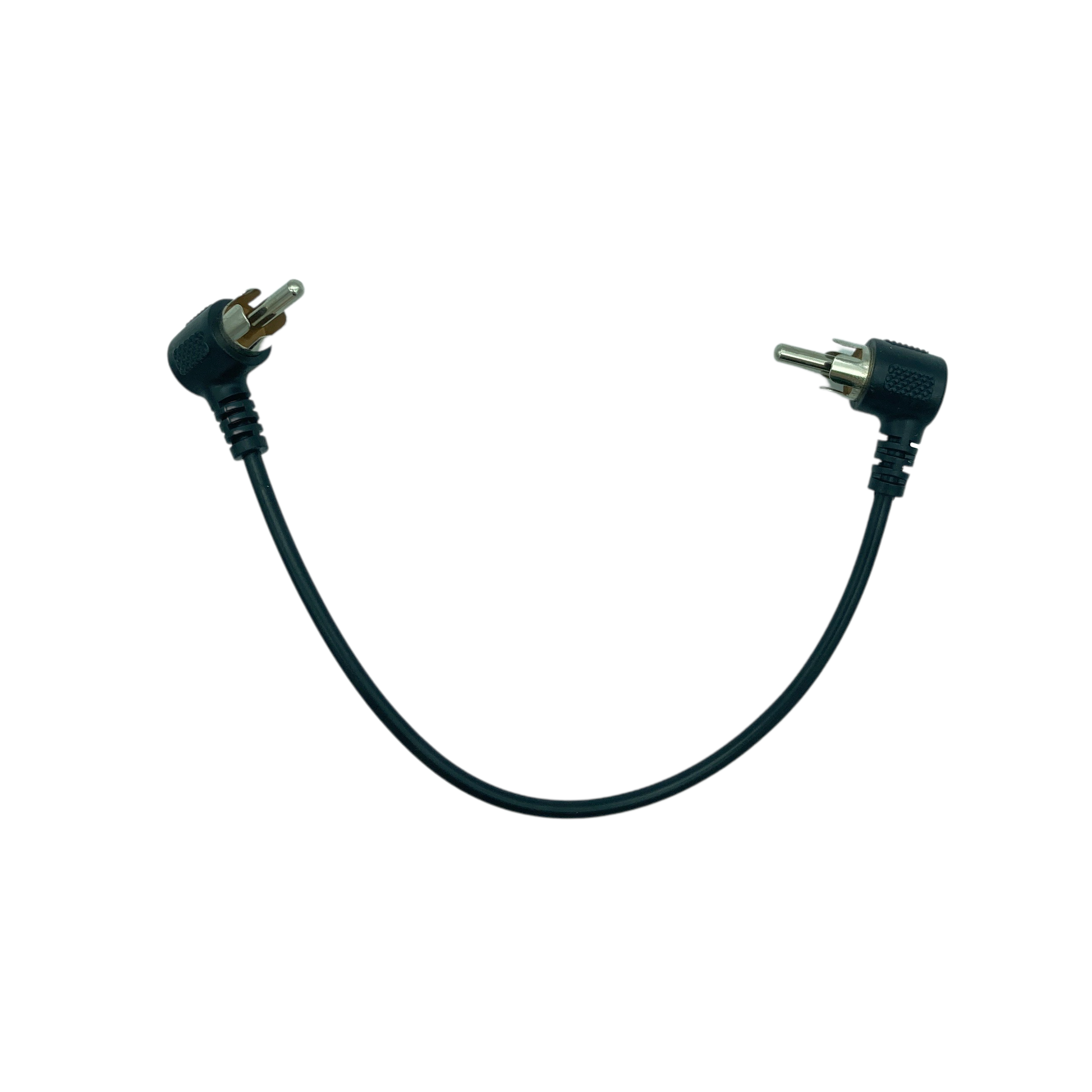

RCA cables for sync connection between modules.

Cables comes in two configurations:

– Right angle plug to right angle plug, perfect to connect two modules that has vertical RCA sockets

– Right angle plug to straight plug, ideal to connect one module with right angle RCA socket to a module with vertical RCA socket.

Each configurations is available in 3 sizes:

– 15cm / 6 inches
– 30cm / 12 inches
– 60cm / 24 inches

Additional information

Weight	N/A
Configuration	Right angle/right angle, Right angle/straight
Size	15cm / 6 inches, 30cm / 12 inches, 60cm / 24 inches
