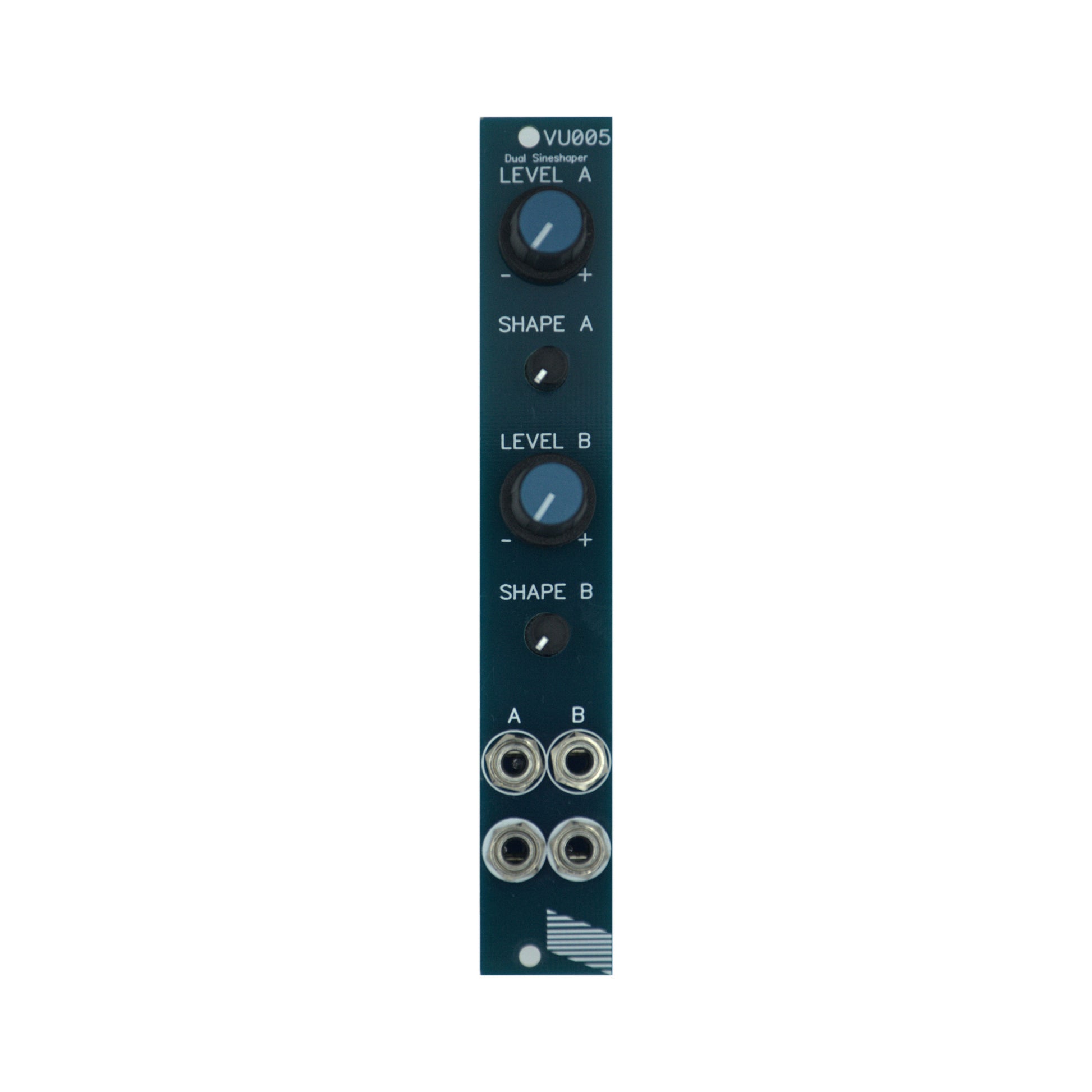

VU005 – Dual Sine Waveshaper – PCB Set

25,00€ (ex. VAT) 30,00€ (inc. VAT)

Out of stock

SKU: VU005PCB Category:

Description

Dual sine waveshaper aimed to process linear signals such as ramp/saw/triangle into exponential waveforms.

Based around a linear to exponential converter, each waveshaper features an attenuverter and offset to give control over distorsion and shape.

– PCB Set: includes Control/Main/Power/Front panel pcbs with pre-soldered BCM847s

– DIY kit: includes PCB Set + all the components required as listed in the BOM

– Assembled module: comes with a 16-to-10pin power cable.

– 4HP
– 33mA +12V
– 32mA -12V
– 0mA 5V
– 50mm deep
