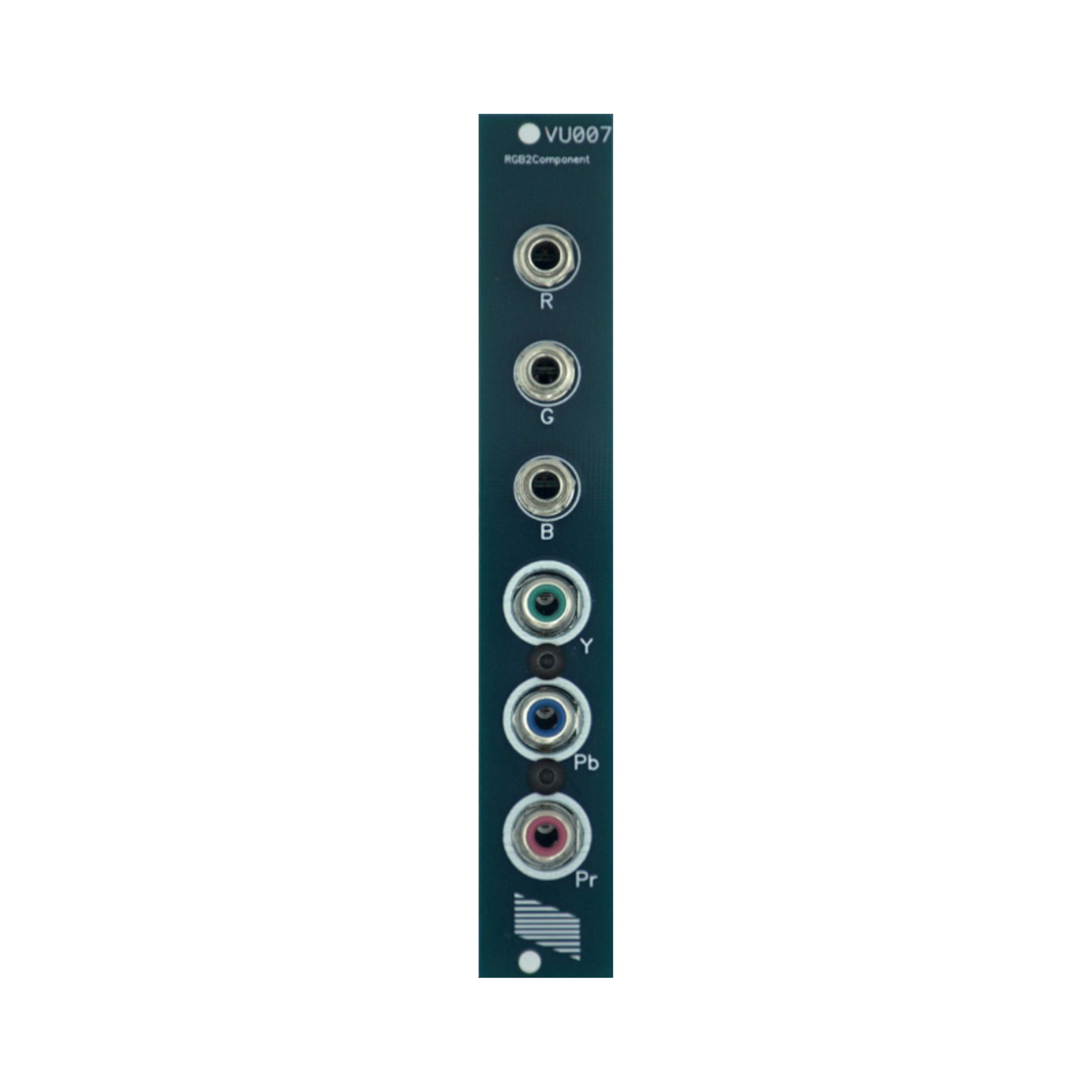

VU007 – RGB2Component – PCB Set

30,00 (ex. VAT) 36,00 (inc. VAT)

Out of stock

SKU: VU007PCB Category:


1V RGB to SD Component Encoder.

Uses 14pin sync cable for composite sync and blanking. PCB set and DIY kit comes with pre-soldered ADA4851-4.

Input : 0-1V RGB, 499 ohms, jack
Output : 0-700mV YpbPr, 75 ohms, RCA

– 4 HP
– 53mA +12V
– 44 mA -12V
– 0 mA +5V
– 65mm deep


Additional information

Weight0,07 kg

PCBs + Front Panel, DIY Kit, Assembled
