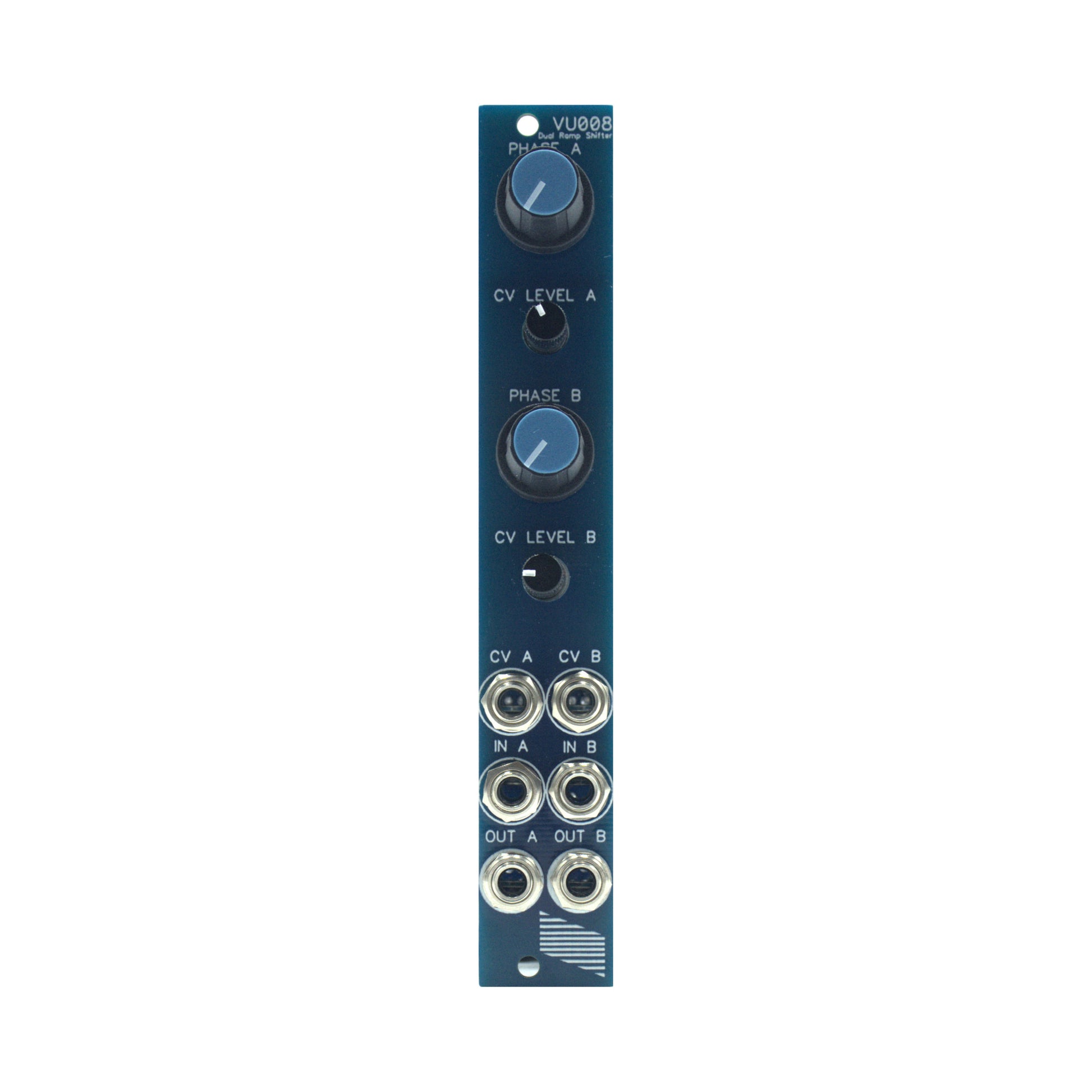

Description

Phase shift ramp/saw signals, resulting in an horizontal/vertical displacement.
Waveshapes sine/triangle signals.

Inputs: 0-1V, 499 ohms, jack
Outputs: 0-1V, 499 ohms, jack

– 4HP
– 55mA +12V
– 50mA -12V
– 0mA +5V
– 65mm deep

Documentation

A couple simulations of htp.syntonie 's new ...

View

Feb 16

Open

A couple simulations of htp.syntonie 's new VU008 Voltage Controlled Dual Ramp Phase Shifter. Do not sleep on this module! This tool fills a long needed animation and wave shaping hole in DIY video.
#vu008 #syntonie #videosynth

.
. shift;
. phase in refresh…
...

View

Nov 12

Open

.
. shift;
. phase in refresh…
.
.
.
.
.
.
.
.
. #lzx #lzxindustries #analog #videoart #videosynth #videosynthesis #crt #sonypvm #sonytrinitron #syntonie #htpsyntonie #vu008 #glitch #glitchart #vaporwave #dreampunk #diy #diyvideosynth

#videoart #videosynthesis #analogvideo ...

View

May 14

Open

#videoart #videosynthesis #analogvideo #lzxcadetvco #lzxcadetramps #reverselandfillmatrixmixer #vu002 #vu004 #vu005 #vu006 #vu007 #vu008 #DIY #eurorack #syntonie

#videoart #videosynthesis #analogvideo #lzxpassage...

View

Mar 12

Open

#videoart #videosynthesis #analogvideo ...

View

Apr 8

Open

#videoart #videosynthesis #analogvideo #lzxcadetvco #lzxcadetramps #lzxcastlevco #reverselandfillmatrixmixer #reverselandfillcmix #vu002 #vu004 #vu006 #vu007 #vu008 #DIY #eurorack #syntonie

Extract from the last AV jam @schlappi_engineering...

View

Apr 23

Open

Extract from the last AV jam @schlappi_engineering and I did, we like bass drums and video feedback. #eurorack #videosynthesis #analogvideo #lzxpassage #lzxarch #lzxfkg3 #lzxbridge #lzxsensorytranslator #reverselandfillmatrixmixer #reverselandfillcmix #vu002 #vu003b #vu004 #vu005 #vu006 #vu007b #vu008 #vu009 #vu010

Three new video synth modules from the excellent ...

View

Jan 28

Open

Three new video synth modules from the excellent Syntonie are now available! - VU008 is a dual ramp phase shifter, based on B. Hutchins Multiphase Waveform Animator.
It phase shifts ramp waveforms, which result in an horizontal/vertical displacement of the ramp and will waveshape other periodic waveforms.
Interesting to add animation to ramp based shape generation by means of slow modulation of the shift, audio/video rate modulation results in complex patterns generation. - VU009 is a video rate sawtooth oscillator, based on P. Baljeu Castle VCO and T. Henry X4046 VCO. It features FM input and voltage offset of the output waveform.
Comes in two versions: 14pin sync and RCA sync by the means of two different power/sync boards. - VU010 is a triple 2:1 mixer, each mixer sums two 1V signals into another 1V signal. Useful for H and V mixing or to mix two RGB triplets.
1st mixer output is normalised to 2nd mixer input, 2nd mixer output normalised to 3rd mixer input, allowing to sum 4 signals with different weigthing of each signal (since each mixer divide the signals by 2 in order to produce a 1V output).
By plugging a single signal to the input of the 1st mixer, output of the 1st mixer will produce a copy of the signal divided by 2, 2nd mixer output divided by 4 and 3rd mixer output divided by 8. Thanks again to Lorenzo Ferronato / loobabalooba for the amazing documentation design!! Documentation is up on Github, and demo video for VU008/VU009 uploaded to Youtube, as well as a demo of how to use CBV and VU together, while waiting for a sync generator/encoder solution to be available. #videoart #videosynthesis #analogvideo #vu008 #vu009 #vu010 #DIY #eurorack #syntonie

#videoart #videosynthesis #analogvideo #lzxpassage...

View

Apr 18

Open

#videoart #videosynthesis #analogvideo #lzxpassage #lzxarch #reverselandfillmatrixmixer #vu002 #vu006 #vu007b #vu008 #vu009 #vu010 #DIY #eurorack #syntonie

#videoart #videosynthesis #analogvideo #lzxarch ...

View

Mar 4

Open

#videoart #videosynthesis #analogvideo #lzxarch #lzxpassage #vu002 #vu004 #vu006 #vu007b #vu008 #vu009 #vu010 #reverselandfillmatrixmixer #DIY #eurorack #syntonie

Made some visuals for @dariuszoltan online radio ...

View

Jun 22

Open

Made some visuals for @dariuszoltan online radio project @10.60hz 📡📻📺 #videoart #videosynthesis #analogvideo #lzxcadetvco #lzxcadetramps #lzxcastlevco #lzxcastleshiftregister #reverselandfillmatrixmixer #reverselandfillcmix #vu002 #vu004 #vu005 #vu006 #vu007 #vu008 #DIY #eurorack #syntonie

Quick patch with Foxing Hour / @fox_burroughs ...

View

Jul 18

Open

Quick patch with Foxing Hour / @fox_burroughs GAMMA Music is made with TTSH and @befacosynth Lich #videoart #videosynthesis #analogvideo #foxinghourgamma #bsocrossfader #lzxarch #lzxfkg3 #reverselandfillmatrixmixer #vu002 #vu006 #vu007b #vu008 #vu009 #befacolich #ttsh #DIY #eurorack #syntonie

VU008 processing R, G and B of an external video ...

View

Mar 1

Open

VU008 processing R, G and B of an external video signal again, this time modulation is Luma of the external video mixed with VU006 at LFO/animation rate using LZX Passage and doubled with VU002. Source footage is a cheesy, free stock video again. #videoart #videosynthesis #analogvideo #lzxpassage #vu002 #vu003b #vu006 #vu007b #vu008 #DIY #eurorack #syntonie

Three new VU modules are now available!

-...

View

Jan 28

Open

Three new VU modules are now available! - VU008 is a dual ramp phase shifter, based on B. Hutchins Multiphase Waveform Animator.
It phase shifts ramp waveforms, which result in an horizontal/vertical displacement of the ramp and will waveshape other periodic waveforms.
Interesting to add animation to ramp based shape generation by means of slow modulation of the shift, audio/video rate modulation results in complex patterns generation. - VU009 is a video rate sawtooth oscillator, based on P. Baljeu Castle VCO and T. Henry X4046 VCO. It features FM input and voltage offset of the output waveform.
Comes in two versions: 14pin sync and RCA sync by the means of two different power/sync boards. - VU010 is a triple 2:1 mixer, each mixer sums two 1V signals into another 1V signal. Useful for H and V mixing or to mix two RGB triplets.
1st mixer output is normalised to 2nd mixer input, 2nd mixer output normalised to 3rd mixer input, allowing to sum 4 signals with different weigthing of each signal (since each mixer divide the signals by 2 in order to produce a 1V output).
By plugging a single signal to the input of the 1st mixer, output of the 1st mixer will produce a copy of the signal divided by 2, 2nd mixer output divided by 4 and 3rd mixer output divided by 8. Thanks again to Lorenzo Ferronato / @loobabalooba for the amazing documentation design!! Consider supporting our retailers as stock on my website is bit limited, @rawvoltage_vienna (Austria) have assembled modules and DIY kits available, @midwestmodular (Minneapolis, USA) is carrying assembled modules and @thonksynth (Brighton, UK) have pcb sets and DIY kits in stock. Documentation is up on Github, and demo video for VU008/VU009 uploaded to Youtube, as well as a demo of how to use CBV and VU together, while waiting for a sync generator/encoder solution to be available. #videoart #videosynthesis #analogvideo #vu008 #vu009 #vu010 #DIY #eurorack #syntonie

Can’t wait for @superbooth_berlin from May 12th ...

View

Apr 28

Open

Can’t wait for @superbooth_berlin from May 12th to May 14th!
I’ll be demoing a glitch processing/video synthesis modular system with two new modules, see you at booth Z386 🎚📺🎛 #superbooth2022 #videoart #videosynthesis #analogvideo #lzxfkg3 #reverselandfillmatrixmixer #vu002 #vu003b #vu004 #vu005 #vu006 #vu007b #vu008 #vu009 #vu010 #DIY #eurorack #syntonie

#videoart #videosynthesis #analogvideo ...

View

Apr 24

Open

#videoart #videosynthesis #analogvideo ...

View

Oct 9

Open

#videoart #videosynthesis #analogvideo #lzxcadetvco #lzxcadetramps #reverselandfillmatrixmixer #vu002 #vu006 #vu007 #vu008 #vu010 #DIY #eurorack #syntonie

#videoart #videosynthesis #analogvideo #lzxpassage...

View

Mar 16

Open

#videoart #videosynthesis #analogvideo #lzxpassage #lzxarch #brownshoesonlychannel #reverselandfillcmix #reverselandfillmatrixmixer #vu002 #vu004 #vu006 #vu007b #vu008 #vu009 #vu010 #DIY #eurorack #syntonie

Recorded a demo video to show how to use VU and ...

View

Dec 15

Open

Recorded a demo video to show how to use VU and CBV modules in a system without a sync generator/RGB encoder. Until now, only VU001/VU002/VU003 were useful in such a setup. The only missing ingredient was an oscillator that can be synced through RCA, which makes other modules from the VU serie relevant for pattern generation, used to modulate CBV001/CBV002 CV inputs here. Full length video and more information on the new VU modules soon. #videoart #videosynthesis #analogvideo #vu001 #vu002 #vu003 #vu005 #vu006 #vu008 #vu009 #vu010 #cbv001 #cbv002 #DIY #eurorack #syntonie #thispersondoesnotexist

Been asked what processing video with VU008 looks ...

View

Feb 27

Open

Been asked what processing video with VU008 looks like, as the demo video doesn’t show it. Here I’m using 2x VU008 to process R, G and B from an external video extracted with VU003, resulting in an offset shifting/key-like effect. First, I’m manually changing the « phase » offsets, then using VU006 at animation/audio rate to modulate the « phase » shifts. VU008 is essentially a comparator + offset shifter, so it only work as a phase shifter with ramp/sawtooth signal, using it with other waveforms will result in waveshaping/offset shifting. #videoart #videosynthesis #analogvideo #vu003b #vu006 #vu007b #vu008 #DIY #eurorack #syntonie

Wishing you happy holidays! As always, thanks for ...

View

Dec 25

Open

Wishing you happy holidays! As always, thanks for your support, constantly amazed by all the creations you all make with our gear! Orders will resume shipping on January 3rd. Will write a proper update post once I'm back from holiday, mostly about the soon to be released VU modules, and other things coming next. In the meantime, here's a patch I made while recording the demo video on how to use VU with CBV. Video source is an AI generated face thanks to thispersondoesnotexist.com, it is then processed through CBV002->CBV001. On the modulation side, VU003 is used to extract luminance from the video signal and used to modulate CBV001 enhance level. Then, a pattern is generated using 2x VU009 (sawtooth oscillators), which are phase shifted with VU008 (dual ramp shifters), itself modulated by VU006 to make a circular movement. It is then doubled with VU002 and mixed with VU010 (triple 2:1 mixer) to make those moving diamonds shape, which are used to modulate CBV002 delay/hue shift. Finally, using CBV002 luminance key feature to key between original and hue shifted video. Recorded in NTSC using BM Intensity and upscaled to 4K in software (in order to mitigate IG/FB compression algorithm). Enjoy the holidays and see you next year! #videoart #videosynthesis #analogvideo #vu001 #vu002 #vu003 #vu006 #vu008 #vu009 #vu010 #cbv001 #cbv002 #DIY #eurorack #syntonie #thispersondoesnotexist

Additional information

Weight	0,05 kg

VU008 – Dual Ramp Phase Shifter – PCB Set
