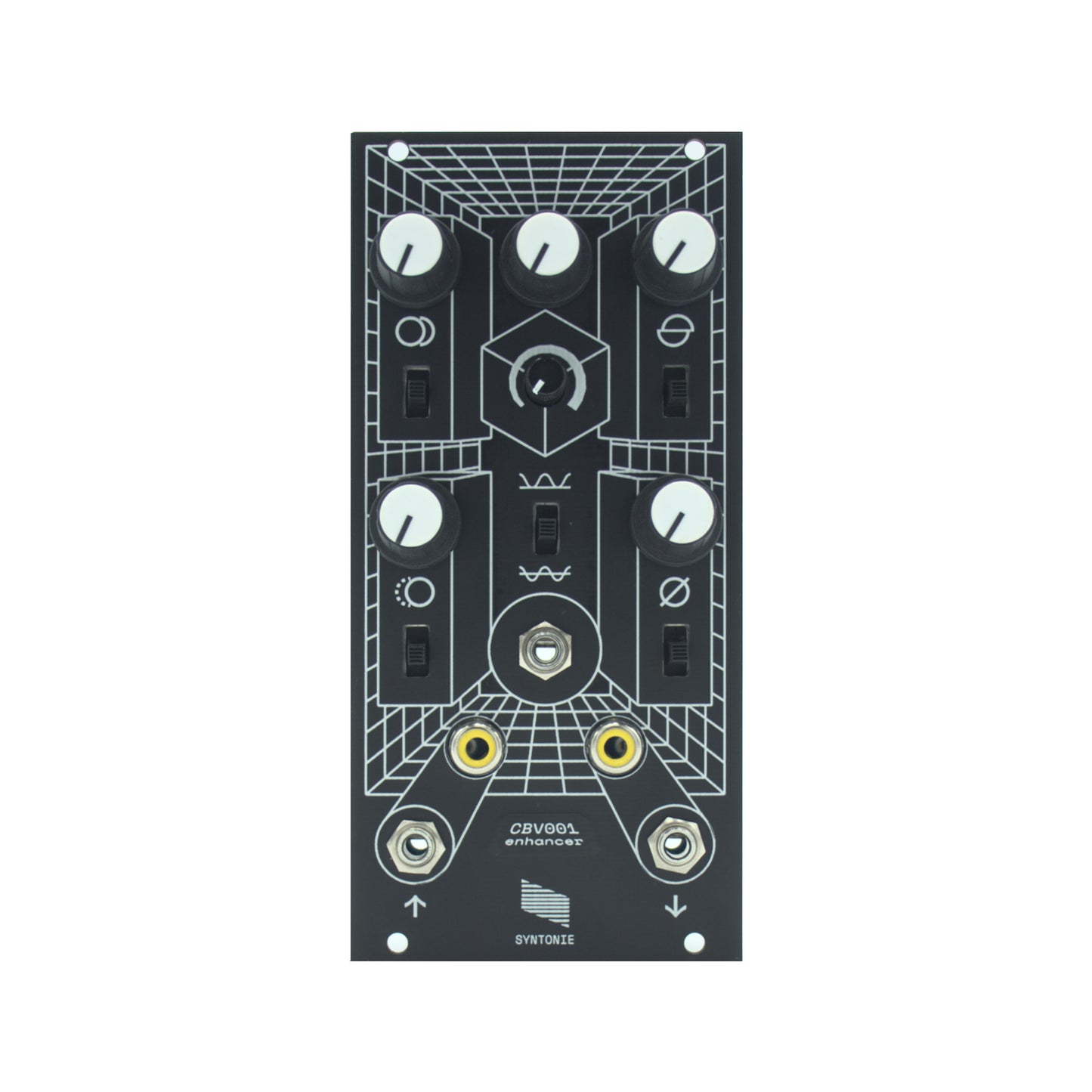

CBV001 - Circuit Bent Video Enhancer - SMD PCB Set

This listing is for CBV001_SMD_Rev_F (bill of material), adds a DC barrel connector for power input.

CBV001 is a circuit bent video enhancer meant to process Composite video. It generates effects ranging from soft color shifts to heavy distortion, with a CV input and attenuator allowing to control the contrast with an external control voltage.
NTSC/PAL compatible

SMD PCB Set includes the main board with pre-populated SMD components and front panel, all the other parts needs to be sourced and assembled by the user. BOM is available here.

- 12HP
- 30mA +12V
- 0mA -12V
- 0mA +5V
- 25mm deep

Documentation
