Supervision - Power & Video Input (PRE-ORDER)

This is a pre-order, first batch is expected to ship third week of November, here is how it is going so far:

- SMT assembly: done
- Through-hole assembly: in progress
- Front panels manufacturing: in progress
- Testing/QC/packing: pending
- User guide: done
- Demo video recording: pending

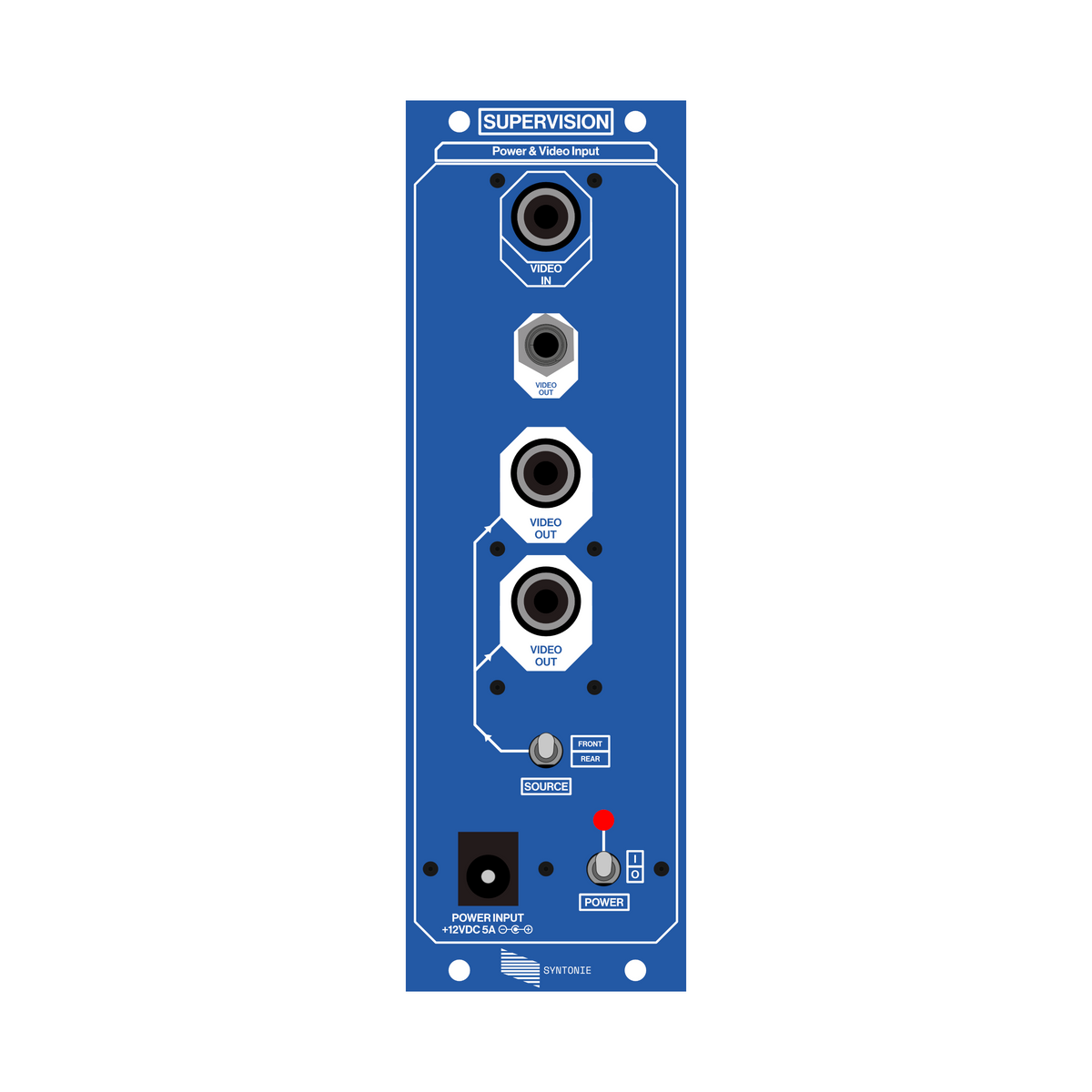

Supervision is a power input module with a front panel DC barrel input, and 18 DC barrel outputs at the back, aiming at powering modules equipped with a DC barrel input.

The module also features a video input RCA at the front, which is converted to a 1V minijack output (DC restoring + scaling), this signal is also buffered and available at the rear of the module, so it can be connected to an encoder like Sortie, and Supervision be used as a video input module to bring an external video signal into the system.

A rear RCA input also allows to bring the system sync signal to the two front panel RCA outputs, in order to sync another system or device. The two front panel RCA features a source selection switch, which can be set to front (front panel RCA input) or rear (rear RCA input).

The module is 27mm deep without any RCA or DC jack connected to the sockets, with standard RCA/DC plug, depth is around 70-80mm, and 55-60mm with right angle RCA + low profile DC plug.

Comes with a +12VDC 5A wall wart with interchangeable plugs (EU, UK, US and AU plugs included), and 6 low profile DC cables (2x 25cm, 2x 50cm and 2x 75cm).
DC cables are available separately here.

User guide
Demo video (WIP)
